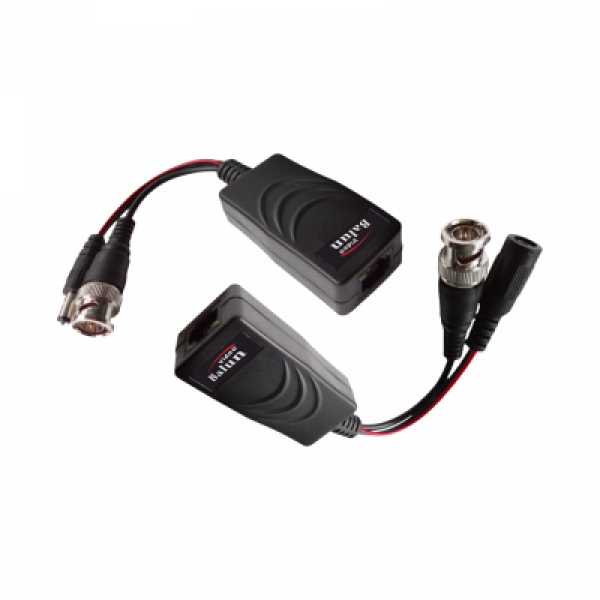

DH-PFM802 Dahua Пассивный мощный видео передатчик

Technical Specification

Model

PFM802

Properties

Power Supply

DC12-15V

Category Type

UTP CAT5E/6 (conductor material: Cu )

Transmission Properties

Input

Distance

Output Power

Using DC12V0.7A power adapter and CAT5E cable for example

0-20m

7.5W

20-40m

6.2W

40-60m

4.5W

60-80m

3.7W

80-100m

2.9W

Video Transmission Properties

Coaxial Video Connector

BNC-M

Connection Way

RJ45

Compatible Format

HDCVI/TVI/AHD/CVBS

Resolution

720P/1080P/4MP/4K

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

Coaxial Cable Connector

2KV(common-mode), 1KV (different-mode)

Per: IEC61000-4-5

UTP Cable Connector

2KV(common-mode), 1KV (different-mode)

Per: IEC61000-4-5

Power Connector

2KV(common-mode), 1KV (different-mode)

Per: IEC61000-4-5

Impedance

BNC Male

75 ohms

UTP Cable

100 ohms

Physical Properties

Weight

85g (0.19lb)

Dimension(LxWxH)

61.5mmx33.5mmx20.5mm (2.42”x1.32“x0.81”)

Shell

ABS

Color

Black
