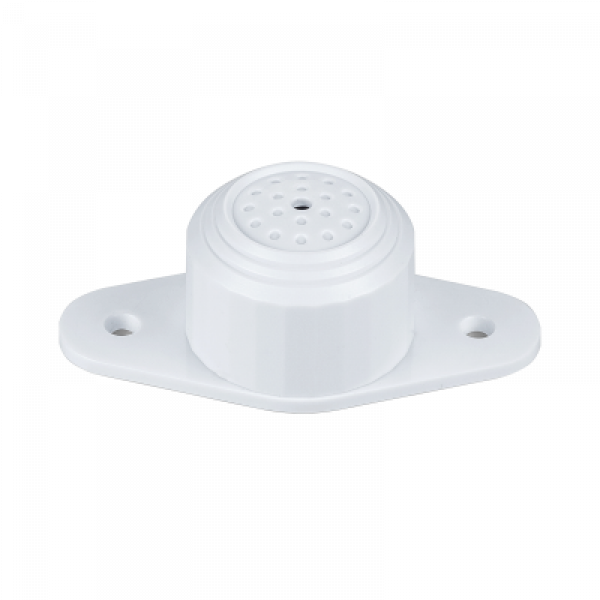

Dahua DH-HAP100 Микрофон
Цена по запросу
Модель: DH-HAP100
Скачать Datasheet
Стать партнером
Описание
| Model | DH-HAP100 |
| General | |
| Scope | 5-40m2 |
| Sensitivity | -40dB(-45~-20dB adjustable) |
| Frequency response | 20Hz～20kHz |
| Directional characteristic | Omni-directional |
| SNR | 70dB(1m 40dB sound source SPL) |
| Dynamic range | 104dB(1KHz at Max dB SPL) |
| Max. sustainable sound pressure | 120dB SPL(1KHz, THD 1%) |
| Output impedance | 600Ω(non-equilibrium) |
| Output signal amplitude | 2.5Vpp/-25dB |
| Working voltage | DC 12V(9~15V) |
| Working current | 60mA(50~100mA) |
| Working temperature | -30℃～+70℃(-22℉~+158℉) |
| Color | White |
| Outer shell | PC |
| Dimension | 63mmx30mmx22mm(2.48”x1.18”x0.87”) |
| Weight | 34g(0.07lb) |
| Carried standard | CE/FCC |
