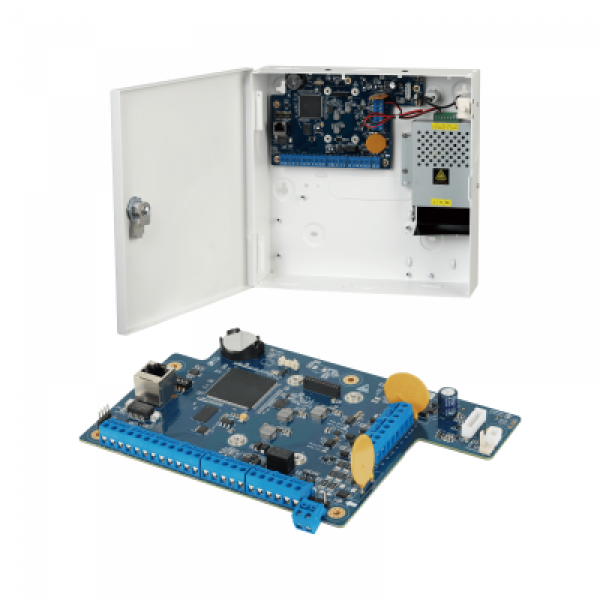

DH-ARC3008C Dahua РАСШИРЕННАЯ ПАНЕЛЬ УПРАВЛЕНИЯ С 8 ЗОНАМИ - Серия Fortress

Port

Alarm Input

8 channels, can be expanded to 72 for zone alarm input

Alarm Output

2 channels, can be expanded to 82 (channel 1–2: MOS outputs, channel 3–82: Relay outputs)

Network

1 RJ-45 10M/100M self-adaptive Ethernet port

PSTN

One group of PSTN RJ-11 ports that support contact ID protocol (with PSTN module)
3 telephone numbers for monitor station (PSTN)

RS-485

2-channel RS–485 ports, support keyboard (A1B1) and expansion module (A2B2) access

2G

Operating frequency: GSM850/GSM900/DCS1800/PCS1900MHz

4G

LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B38/B40/B41
GSM/EDGE: B3/B8

Siren

1 12V/1A siren output port

Battery

1 12V/7Ah battery port

Auxiliary Power Output

2 12V/1A AUX power output ports

Tamper

1 case tamper port for the alarm control panel
1 leave-wall tamper
1 siren tamper input

Function

SMS Notification

Supports up to 8 telephone numbers for SMS and remote control (with 2G or 4G module)

Phone Call Notification

Supports up to 8 telephone numbers for vocal message (with 2G or 4G module)

Network Protocol

TCP/IP, DHCP, static IP, P2P

Configuration Method

Keypad, client software

Arm and Disarm Method

Keyboard, swipe card, DMSS App, SMS

External Agreement

Supports customized access to the third parties by SIA

Number of Keyboards

Max. 8 keypads

Area

8 areas

Partition

Each area includes 2 partitions

Timers

8 timers, can be used for user authorization restrictions, output linkage control, automatic arming and disarming control, and more

Power Management

Automatic switching between main power supply and backup power supply
Alarm for main power loss
Alarm for battery loss and battery voltage fault

Event Logs

Max. 1000

User Management

Max. 100 users
7 user levels: Supervisor, Manager, Master, User, Temporary, Duress, and Patrol
1 TECHNICIAN

Query

Query for zone fault, system fault, program version, and signal strength

Language

English, Italian

App

DMSS App

RFID Card

Arm and disarm by swiping card (With ASR1101A/ASR1101A-D)

General

Main Power

Input: 110-220V AC, 50/60Hz Output: 14.5V DC 2.7A

Standby Power

12V DC/7Ah lead-acid battery

Power Consumption

Max. 35W

Operating Temperature

–10°C to +50°C (14°F to 122 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

275.0 mm × 275.0 mm × 77.0 mm

(10.83" × 10.83" × 3.03") (L × W × H)

Installation

Wall mount

Net Weight

≤3 kg (6.61 lb)

Certification

CE: 4789104635
