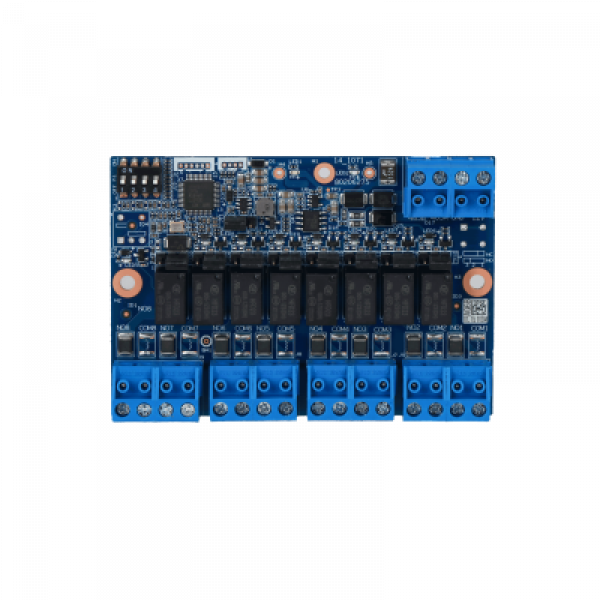

DH-ARM708-RS Dahua Модуль расширения выходов

Port

Alarm Output

8

RS-485

1, connected to a maximum of 300 m (984.25 ft) cable typed RVV2*1.5

Function

Device Address

1–8

Alarm Output Mode

Switch between NO and NC with jumper

Output Capacity

DC30V/500mA

Update

Remote update by client software

General

Power Supply

12V DC

Power Consumption

1.8W

Operating Temperature

–10°C to +55°C (14°F to 131°F)

Operating Humidity

10%–90% (RH)

Product Dimensions

90.0 mm × 62.0 mm × 12.6 mm

(3.54" × 2.44" × 0.5") (L × W × H)

Net Weight

≤1 kg (2.20 lb)
