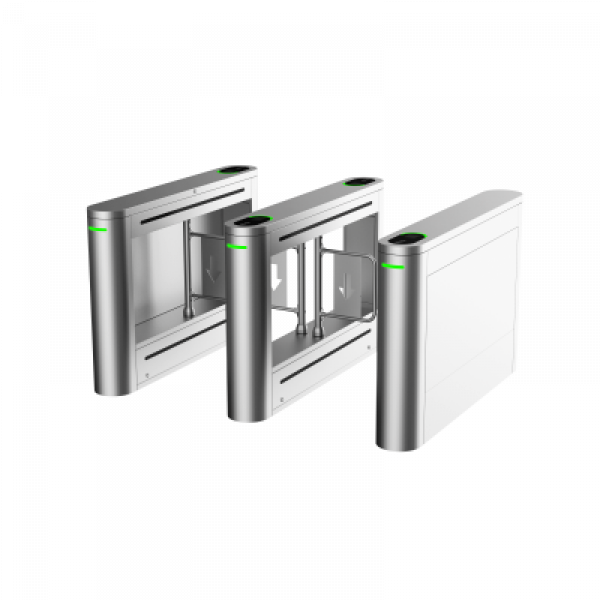

DH-ASGB5XXJ-X Dahua Поворотный турникет

Basic

Motor

DC motor

Detection

10 pairs of IR detectors

Function

Anti-collision

Yes

Memorizing

Yes

Anti-trailing

Yes

Second Unlock

Yes

Climbing Alarm

Yes

Anti-pinch

Yes

Stay Overtime Alarm

Yes

Intrusion Alarm

Yes

Performance

Unlock/Lock Speed

1.0 s, adjustable

Auto Lock Duration

5 s

Maximum Waterproof Depth

18 cm

Lock Delay Duration

0 s–60 s, adjustable

Lifespan

3 million times

Passing Frequency

20 people/minute–30 people/minute

Passage Width

Standard: 600 mm; the maximum custom passage width: 1100 mm

General

Net Weight

One-motor module turnstile: 70 kg (154.32 lb) two-motor module turnstile: 120 kg (264.55 lb)

Gross Weight

One-motor module turnstile: 95 kg (209.44 lb) two-motor module turnstile: 145 kg (319.67 lb)

Casing Material

Wooden case

Power Supply

AC 100V-240V, 50/60Hz

Power Consumption

One-motor module turnstile: 50 W; two-motor module turnstile: 100 W

Operating Temperature

-30°C to +70°C (-22°F to +158°F)(When operating temperature is below 0°C, heating module is needed.)

Operating Humidity

10%RH–90%RH

Operating Environment

Indoor and outdoor

Product Dimensions

1500 mm × 220 mm × 980 mm

(59.06" × 8.66" × 38.58")

Surface Polishing

Wire drawing with oil

Cabinet Material

SUS304 1.2 mm

Cabinet Cover Material

SUS304 1.5 mm

Certifications

CE, FCC
