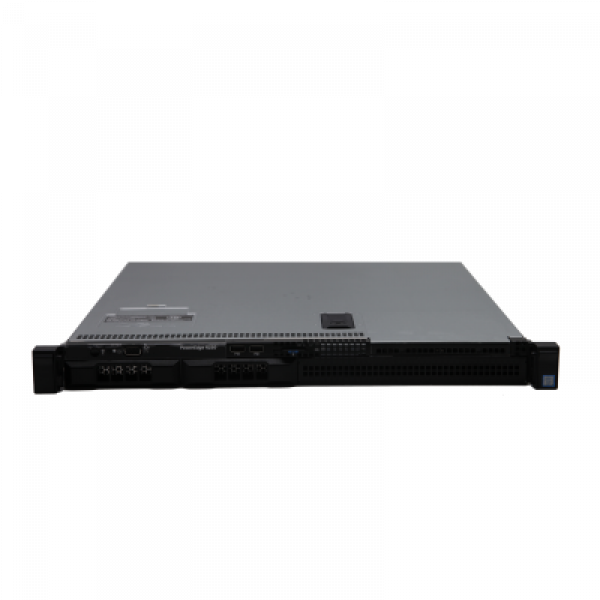

DH-IVS-V-PRO Dahua Анализатор качества видео
Скачать Datasheet
Стать партнером
| System | |
| Main Processor | Intel Xeon E3-1220 v5 3.0GHz |
| Operating System | Windows Embedded |
| Memory | 8GB |
| HDD | 1TB |
| Interface | |
| Ethernet Port | 2*1000Mbps Ethernet Port |
| Other Port | 4*USB 3.0, 2*VGA Port, 1*HDMI Port |
| Others | |
| Power | 250W |
| Work Temperature | 10°C—35°C |
| Work Humidity | 10%—80% |
| Storage Temperature | -40°C—65°C |
| Storage Humidity | 5%—95% (non-condensation) |
| Dimension | 495mm*42.8mm*434mm |
| Technical Specification | |
| Video Definition | CIF, D1, 720P, 1080P |
| 1-channel Detection Time | Support 15/20/25/30 Seconds |
| Capacity of Plan, Scheme and Project | · One server supports 10 tour tasks · One task supports 1000 channels · For 1080P, one IVS-V server can max support 4 schemes analytics and 4000 HD channels. · For D1, one IVS-V server can max support 10 schemes analytics and 10000 channels. |
| Detection Success Rate | >90% |
| Defocus Detection | Response Time < 1s |
| Overexposure Detection | Response Time < 1s |
| Underexposure Detection | Response Time < 1s |
| Low Contrast Detection | Response Time < 1s |
| Color Cast Detection | Response Time < 1s |
| Jitter Detection | Response Time < 1s |
| Noise Detection | Response Time < 1s |
| Stripe Detection | Response Time < 1s |
| Video Loss Detection | Response Time < 3s |
| Video Freezing Detection | Response Time < 3s |
| Tampering Detection | Response Time < 3s |
| Scene Changing Detection | Response Time < 3s |
