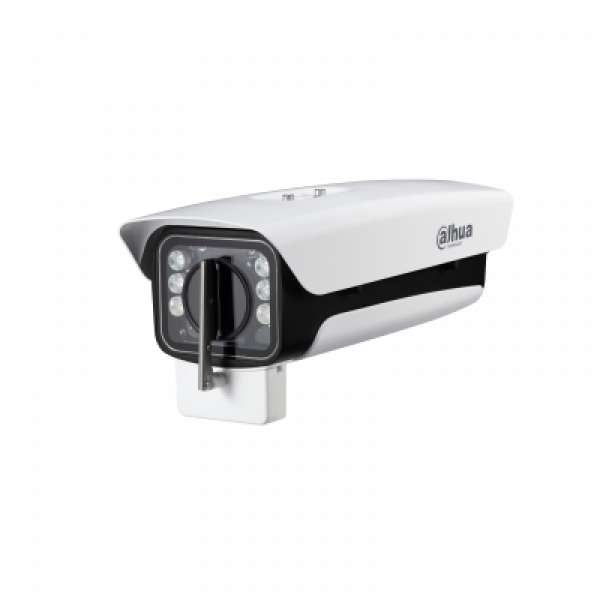

DH-PFH610N-IR-W Dahua 14-дюймовый полнофункциональный корпус

Technical Specification

Model

DH-PFH610N-IR-W

General

Inside Dimension(LxWxH)

255mmx90mmx70.5mm(10.04”x3.54”x2.78”)

215mmx90mmx83mm(8.46”x3.54”x3.27”)

Window Dimension

ɸ60mm(ɸ2.36”)

Operating Temperature

Set

-40℃~+60℃(-40℉~+140℉)

Heater

ON: 5±5 ℃/OFF: 15±5 ℃

Cooler

ON: 37±5℃/OFF: 20±5℃

ON: 5±5 ℃/OFF: 15±5℃

IR Distance

0~100m(0~328.08ft)

RS485 Control

Yes, use RS485 to control IR light & wiper

Wiper

Yes

Power Supply

AC24V/5A

Power Consumption(without camera)

Max. 70W

Environmental

Operating Temperature

-40℃~60℃(-40℉~+140℉)

Humidity

<90% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Corrosion Protection

N/A

Construction

Material

Aluminum(case)&PC(others)

Dimension(LxWxH)

404mmx164mmx175mm(15.91”x6.46”x6.89”)

Weight

3.3kg(7.28lb)

Others

Certification

CE, FCC, ICES

Applicable Model

Please see “Accessory Selection”
