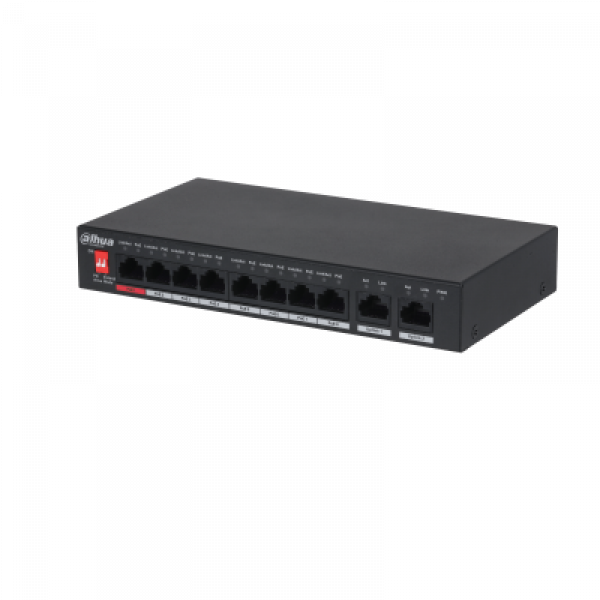

Dahua DH-PFS3010-8ET-96 8-портовый коммутатор PoE (неуправляемый)

Technical Specification

Model

PFS3010-8ET-96

Ethernet Port

8*10/100Mbps PoE ports

2*10/100/1000Mbps ports

PoE Power Consumption

Port1≤60W, Port2-8≤30W, Total≤96W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 1, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

5.6Gbps

Packet Forwarding Rate

4.17Mpps

Packet Buffer Memory

4Mb

MAC Table Size

16K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

490g

Dimension(W×D×H)

190mm×100mm×30mm
