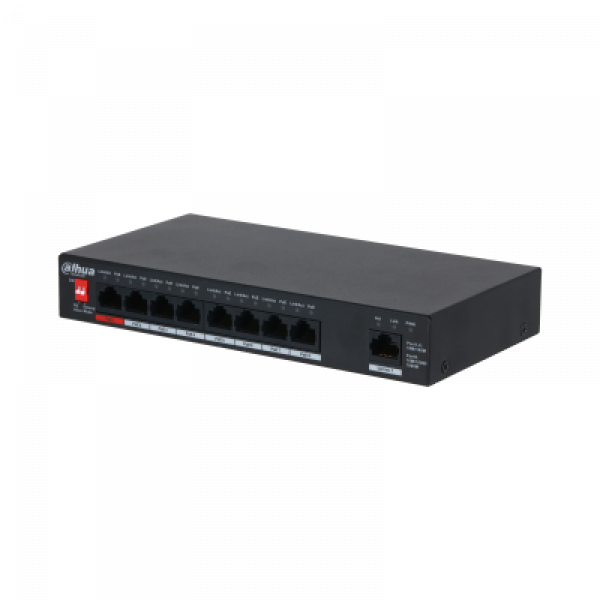

Dahua DH-PFS3009-8ET1GT-96 9-портовый неуправляемый настольный коммутатор с 8-портовым PoE

Hardware

Ethernet Port

Port 1-8:8 × RJ45 10/100M(PoE)
Port 9:1 × RJ45 10/100/1000M(Uplink)

PoE Budget

Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W

Power Consumption (static)

2.7W

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE

PoE Pin Assignment

PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 1, 7, 8 (V-)

Long Distance

250 m, 10 Mbps

PoE Management

Support

Switching Capacity

3.6 Gbps

Packet Forwarding Rate

2.678 Mpps

Packet Buffer Memory

1 Mbit

MAC Table Size

2K

Flow Control

Enable by default

Operating Humidity

5%–95%

Power Supply

External power adpater: 53V DV

Thunderproof

Common mode: 4kV
Differential mode: 2kV

ESD

Air discharge: 8kV
Contact discharge: 6kV

Mounting

Support desktop and wall mounting

Anti-theft Lock Hole

Support

Operating Temperature

-10°C to 55°C (14°F to 131°F)

Weight

Net weight: 0.47 kg (1.04 lb)
Box weight (with accessory): 1.28 kg (2.82 lb)
Protective box weight (with accessory): 10.98 kg (24.21 lb)

Dimensions (W × D × H)

190 mm × 100 mm × 30 mm (7.48” × 3.94” × 0.9”)

Packaging Dimensions (W × D × H)

Packing box: 267 mm × 239 mm × 77 mm (10.51” × 9.41” × 3.03”)
Protective box: 549 mm × 253 mm × 331 mm (21.61”× 9.96” × 13.03”)
