Новинка
Есть в наличии

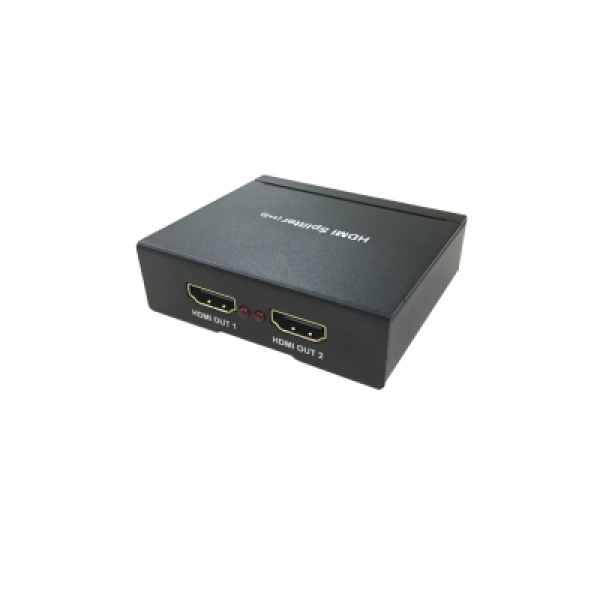

Dahua PFM701-4K Сплиттер HDMI
Цена по запросу
Модель: PFM701-4K
Скачать Datasheet
Стать партнером
Описание
| Model | PFM701-4K |
| Properties | |
| Input Signal | 1-channel HDMI |
| Output Signal | 2-channel HDMI |
| Video Transmission Properties | |
| Video Signal Input Interface | HDMI interface |
| Video Input Port | HDMI interface |
| Input Voltage | DC5V |
| Power | <3W |
| HDCP Version | Support HDCP 1.2 |
| HDMI Version | Support HDMI 1.4 |
| Resolution Output Signal | |
| Resolution | 4K/1080P/1080I/720P/576P/576I/480P/480I |
| Output Voltage | 0.5~1.5Vp-p |
| Impedance | |
| ESD | ±6KV(contact discharge) |
| ±8KV(air discharge) | |
| Per: IEC61000-4-2 1995(GB/T 17626.5) | |
| Anti-thunder | ±2KV(common mode), ±1KV(differential mode) |
| Per: IEC61000-4-5 GB/T 17626.5 | |
| Stability | |
| MTBF | >5000h |
| Physical Properties | |
| Dimension(L*W*H) | 70.3mmx60.1mmx20.5mm(2.77”x2.37”x0.81”) |
| Shell | Iron |
| Color | Black |
| N.W. | 127g(0.28lb) |
| Environmental | |
| Working Temperature | -10℃~55℃(14℉~131℉) |
| Storage Temperature | -20℃~80℃(-4℉~176℉) |
| Humidity | 0~95%(non-condensing) |
| Certification | |
| Certification | CE/FCC |
